Connect simple JP1 cable to your computer

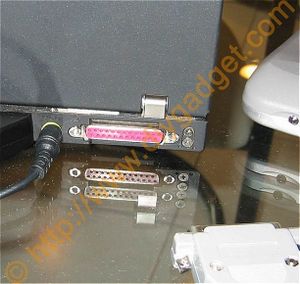

  1. Locate the parallel port on your computer.
    Imgfeed 011 c.jpg

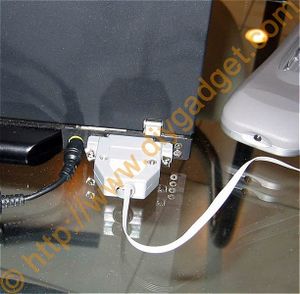

  2. Plug the DB25 connector to the parallel port.
    Imgfeed 005 c.jpg

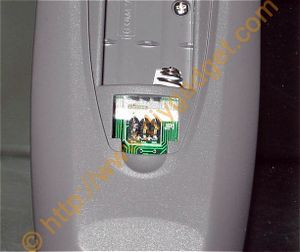

  3. Locate the JP1 connector on your universal remote control.
    Imgfeed 010 c.jpg

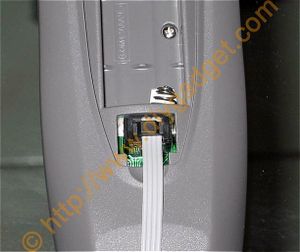

  4. Plug the JP1 header to the JP1 connector on the remote control.
    Imgfeed 007 c.jpg

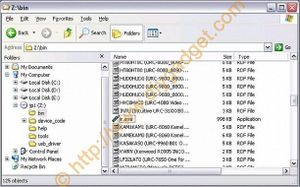

  5. Locate the ir.exe program on your CD or downloaded and unzipped directory. Execute ir.exe program.
    Imgfeed c.jpg

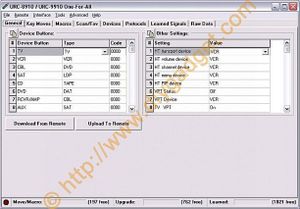

  6. This is the main window of IR program.
    Imgfeed 006 c.jpg

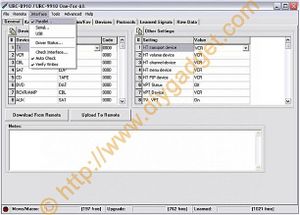

  7. Select "Interface" menu and "Parallel" sub-menu.
    Imgfeed 012 c.jpg
  8. A dialog pops up. You can specify the address of your parallel port. Normally, you should select 378 for desktop computers, and 3BC for laptop computers. If non of these ports are working, check your computer's manual.
    Imgfeed 003 c.jpg

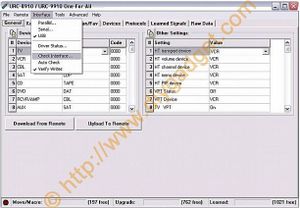

  9. Select "Interface" menu and "Check Interface..." sub-menu.
    Imgfeed 008 c.jpg
  10. Make sure all connectors are connected correctly. Click Yes.
    Imgfeed 009 c.jpg
  11. Interface check is successful.
    Imgfeed 004 c.jpg

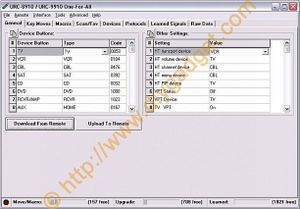

  12. Congratulations! You are done! Have fun!
